Winamp @ fingertips

the circuit

Well, been seriously thinking of writing something geeky( or atleast semi-geeky :) ), and here I'm with something that's totally so un-geekish.

The following circuit is to control the Nullsoft Winamp media player using push switches connected via Serial-port. I had an estimated expense of 30-40 rupees in setting up the whole circuit and getting it to work.

The idea is to control the basic functionalities of Winamp via external control. I was searching for the same for amarok and landed up with a plug in that allows interaction with Winamp directly from serial port.

Bought the necessary components and the soldering session began. Its my first attempt at soldering and thus it ain't looking all that good. But then what's insulation tape for! Assembled the switches on an old CD box and let the cables long enough so that the box can be placed conveniently at any location near my table. Test run came out succesful!

The circuit is as follows. One terminal each, of the four switches is connected to port 4 of the serial port connector.. Rest is shown in the circuit diagram.

Then comes the time to configure the plug-in which is, in my opinion, quite an easy job.

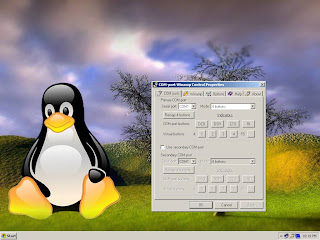

This is how the plug-in window looks.

And, there I have my own private music buttons to control my favorite music player!!
